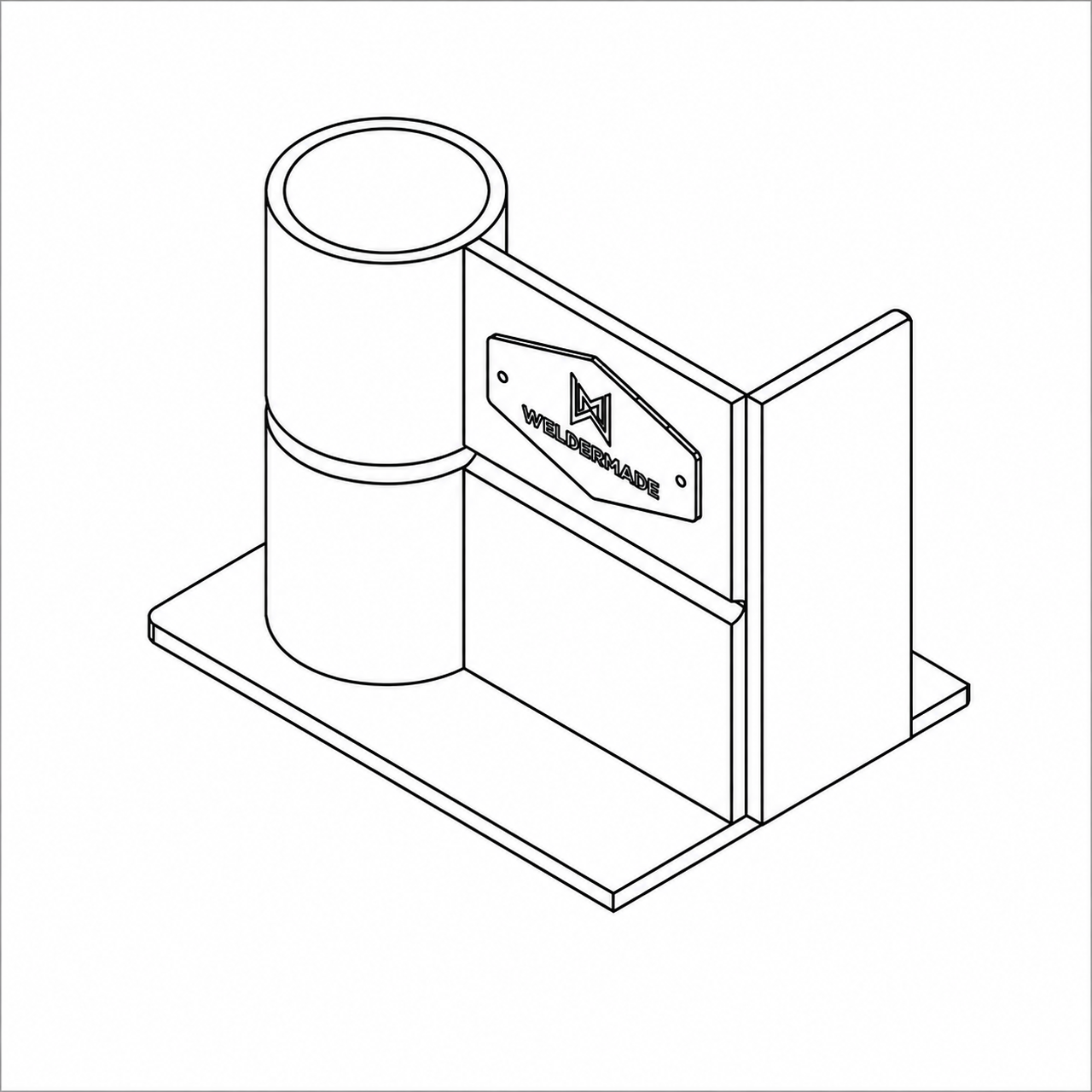

Structural Steel #30

ST-30 Welding Project

Great for Weld Tests
Great for Weld Training
Great for Welding Competitions — SkillsUSA Regional & State Suggested Project

• Total Weld Inches: 39''
• Metal Type: 1/4 Plate 2.5''Sch 40 pipe  ( 60 Degree bevel opening )
• Size: 7.5''Long 6'' wide and 6'' Tall

• Welding Process: SMAW FCAW GMAW GTAW

The ST-30 provides excellent 2G open-root welding practice on both plate and pipe, while also incorporating valuable fillet weld and corner-joint training and testing.

The top of the pipe is intentionally left open, allowing instructors and evaluators to easily inspect the root and assess weld quality.

A generic blueprint for layout and tack-up is included with the purchase of this project.

If you need weld-symbol-specific blueprints, please email Chandler@weldermade.com after purchase.
