Structural Steel #32

ST-32 Welding Project

Great for Weld Tests
Great for Weld Training
Great for Welding Competitions — SkillsUSA Regional & State Suggested Project

• Total Weld Inches: 57''
• Metal Type: 1/4 A36 Steel Plate 2'' sch 80 pipe  ( 60 Degree bevel opening )
• Size: 8''Long 4''wide and 6.5'' Tall

• Welding Process: SMAW FCAW GMAW GTAW

The ST-30 provides excellent 5G open-root welding pipe, while also incorporating valuable fillet weld  training and testing.

The side of the pipe is intentionally left open, allowing instructors and evaluators to easily inspect the root and assess weld quality.

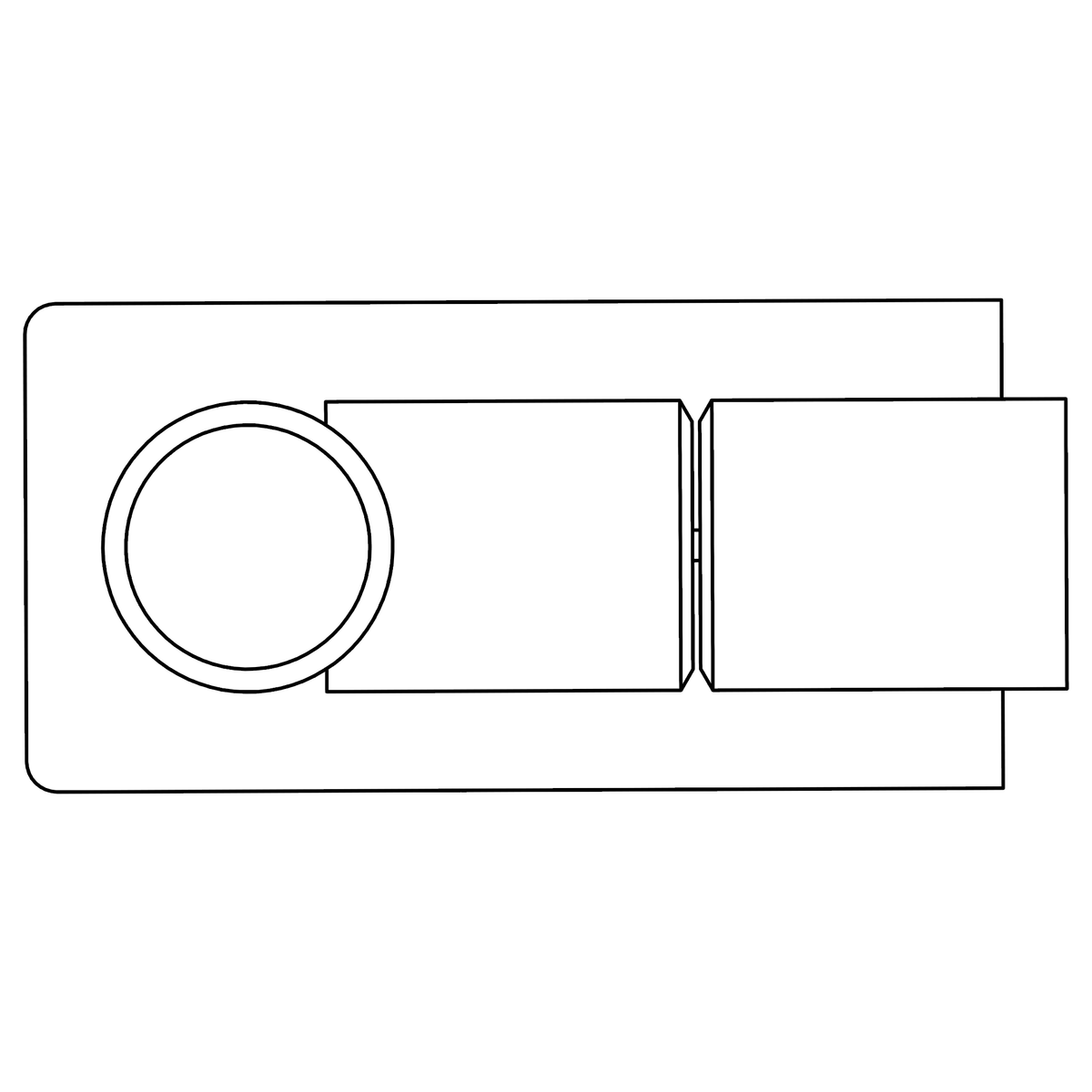

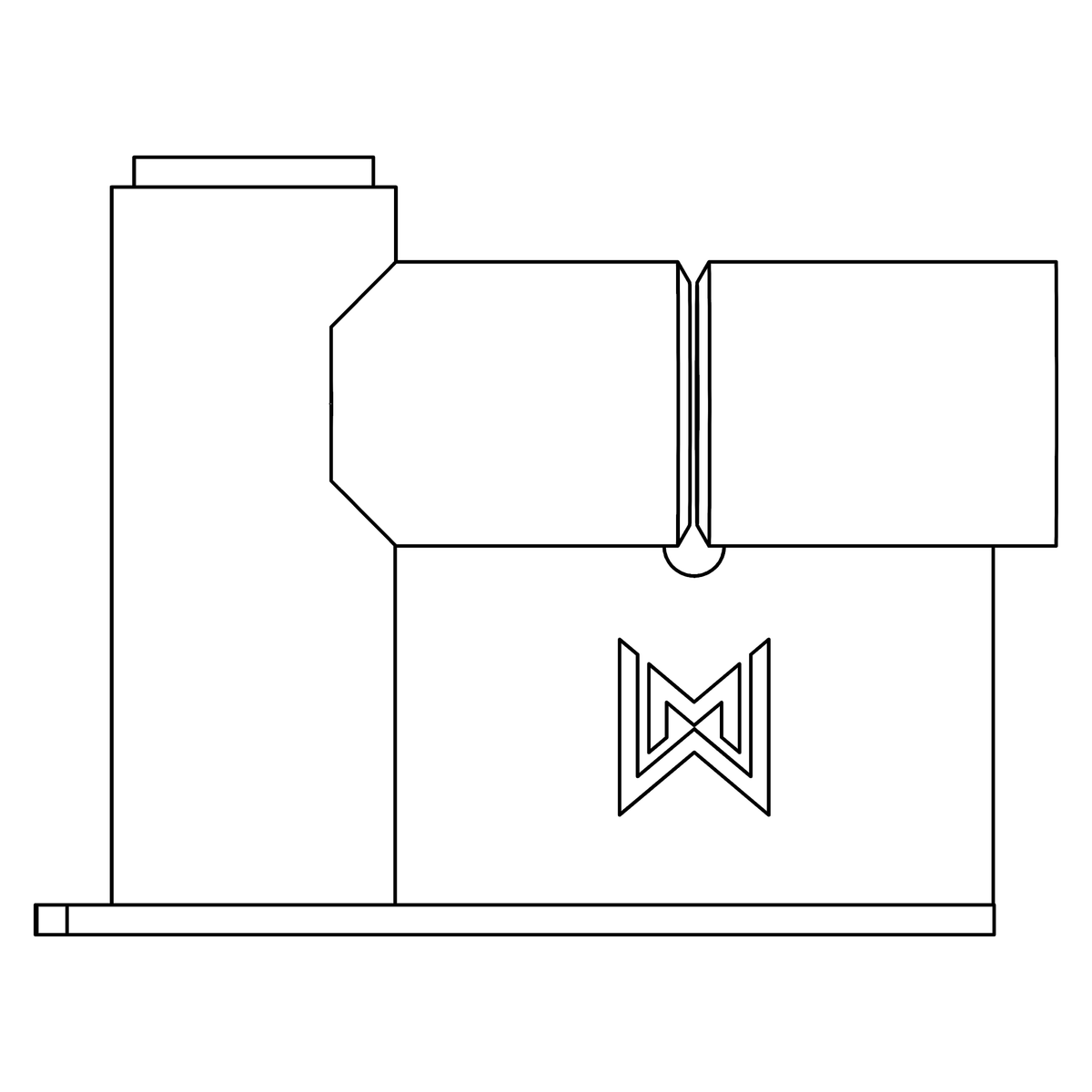

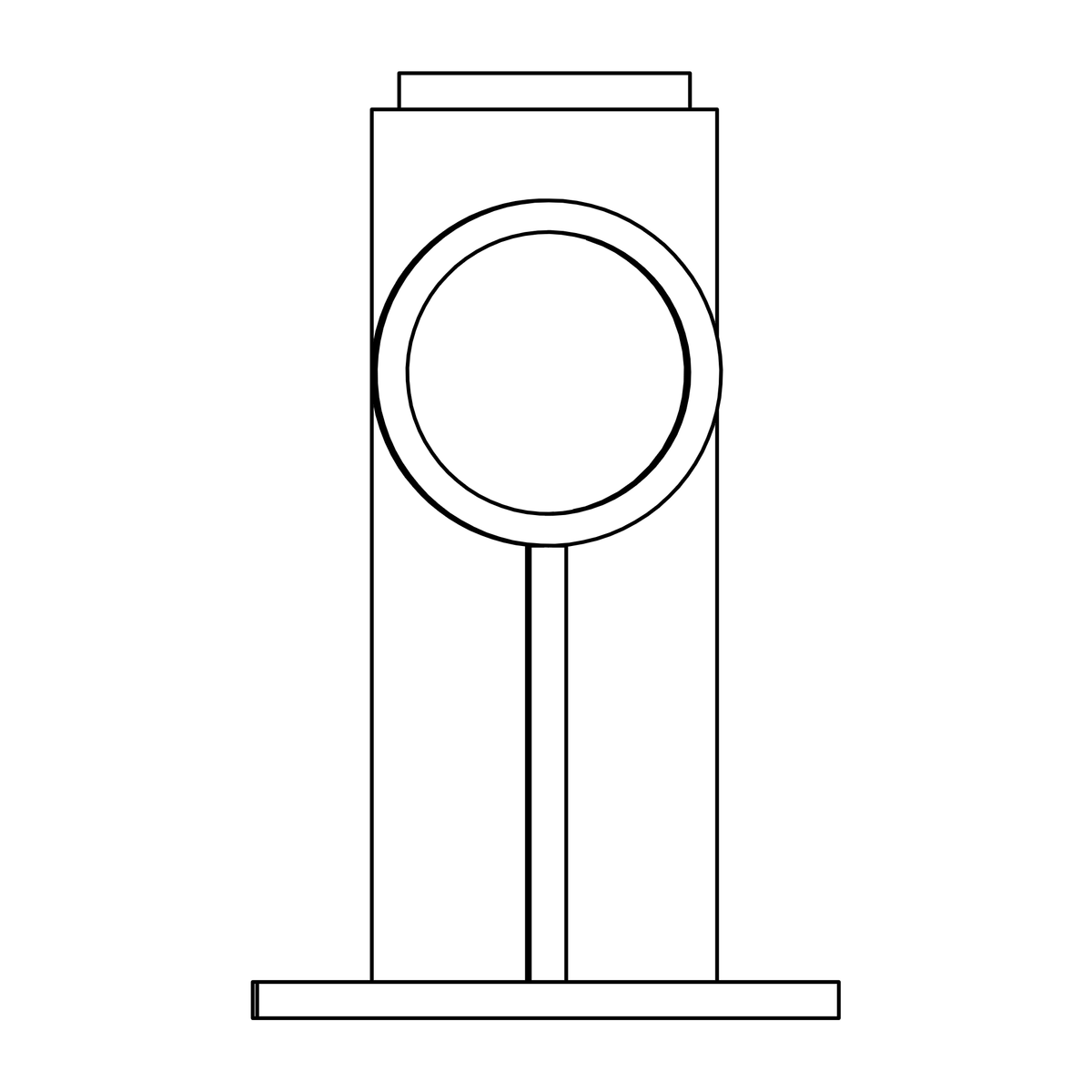

A generic blueprint for layout and tack-up is included with the purchase of this project.

If you need weld-symbol-specific blueprints, please email Chandler@weldermade.com after purchase.
